Huixian Xinda Textile Machinery Parts Co., Ltd. provides P106 small picker shuttle looms leather knot (polymer leather tongue), Weaving Loom Picking Knot. There are two types of P106 split leather knots for textile equipment - small and large. The difference in the specifications of the P106 leather knots used by shuttle looms is the width, with the large one being 26 millimeters and the small one being 24 millimeters. The overall appearance of the shuttle knots is the same; P106R Loom Picker.

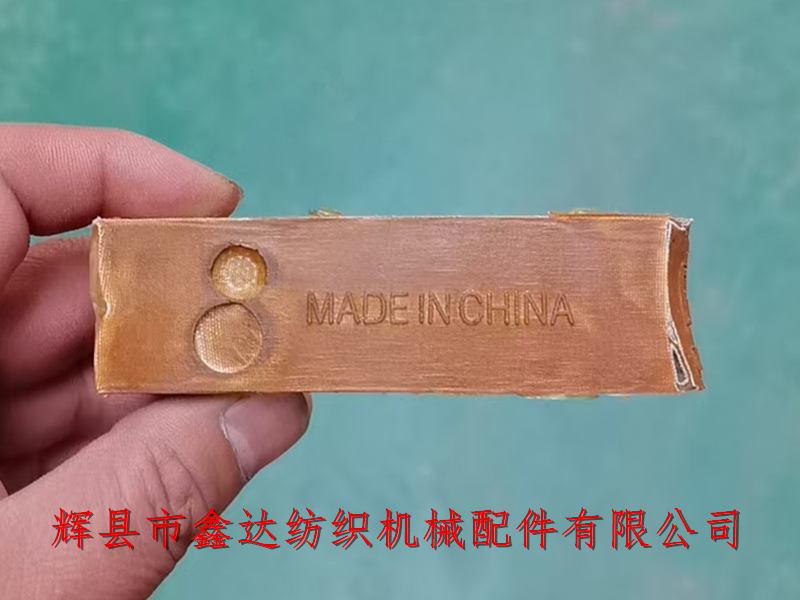

The above picture is a side view of the small P106 skin structure, labeled MADE IN CHINA. The total height is 28 millimeters, and the total length of the upper plane is 100 millimeters. There are two fixing grooves on the left side for fixing the skin structure tongue (skin tongue, Liren), which are used for rivet through riveting.

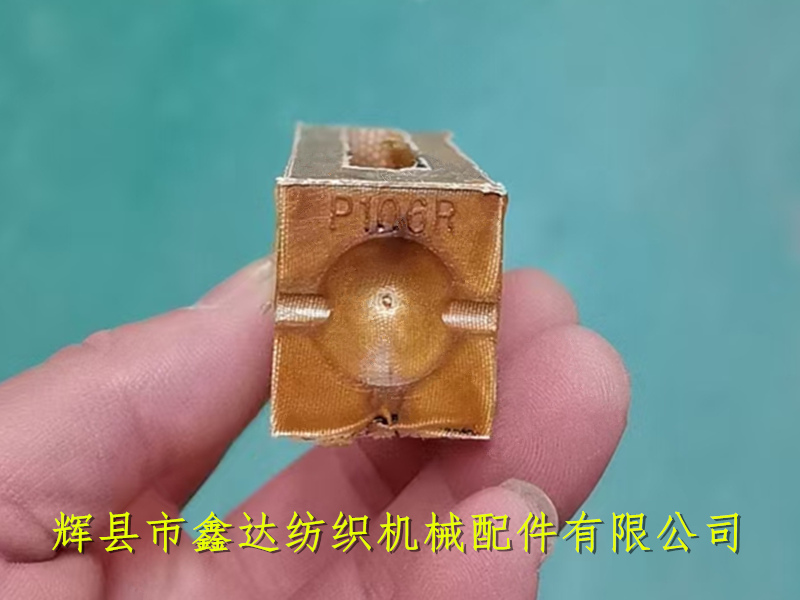

The above picture shows the shuttle point of this leather knot, with a conical depression in the middle used to impact the shuttle tip. There is a model label of "P106R" above it, and the inner width of the groove (rod groove) on the upper plane is 10mm and the inner length is 45mm;

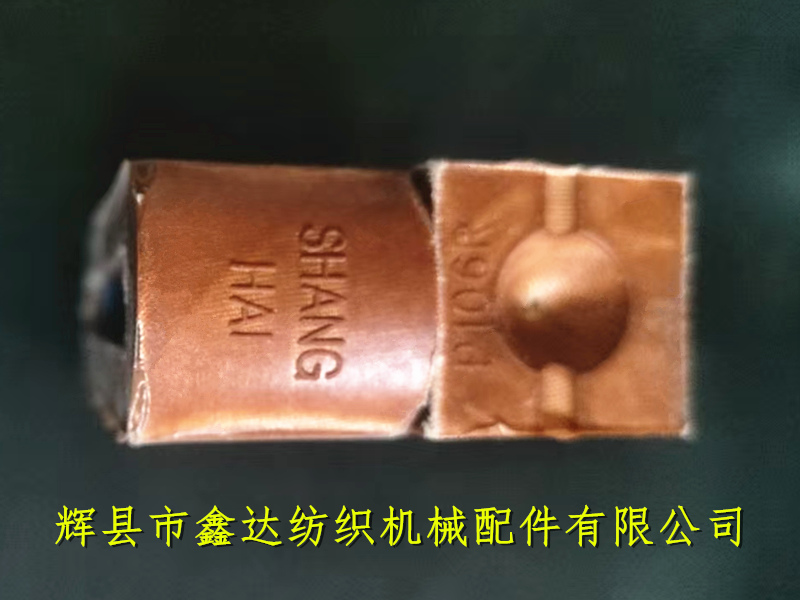

The above picture is a rear view of the leather knot on the small P106R loom, and the following picture is a rear view of the leather knot on the large P106R loom, which can be used for comparison:

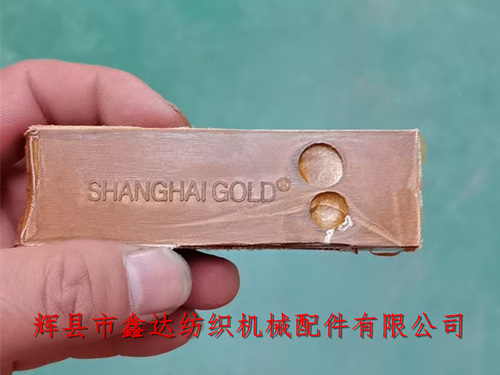

The two sides of the large P106 shuttle knot have no markings, while the small P106R leather knot (shuttle knot) has English letter markings. The following is a side view of the skin knot tongue (Tongue with polymer, Skin Tongue) made of blue polymer material:
The packaging for P106 weaving machine leather knots is in cardboard boxes, with 200 pieces per box and a minimum order quantity of 1000 pieces; If you need to purchase P106 picker, P106R shuttle knots, textile leather parts R, polymer nylon leather tongues and other shuttle textile equipment, you can contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
