Huixian Xinda Textile Machinery Parts Co., Ltd. provides shuttle parts for ribbon weaving machines with handle glass rings (with tail guide yarn rings),Handle Glass Ring Ribbon Loom Shuttle Part. The tail handle rod of the glass ring is used to fix the tension spring on the shuttle of the ribbon weaving machine. The handle glass ring is generally located on both sides of the shuttle cavity, and the tailless glass ring is installed on the middle guide yarn rod. The weft yarn material used for the ribbon weaving machine has high requirements for the guide yarn, and the glass ring has the characteristics of smoothness and wear resistance, so it is often used as the guide yarn accessory for the hat belt machine shuttle.

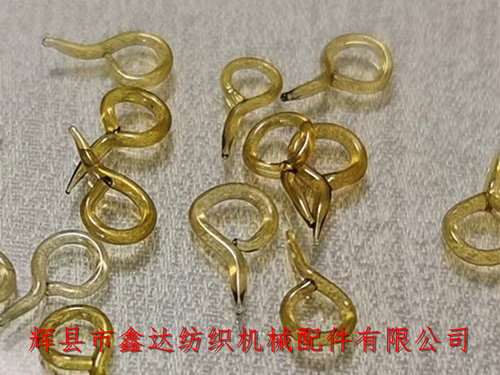

The material of the glass ring is glass, which is an accessory for the weaving machine shuttle and belongs to the textile equipment category. The above picture is a detailed photo of the glass ring. A 2mm diameter spring is inserted into the tail handle rod and rotates to clamp the glass ring.

Each weaving machine shuttle is equipped with 2 handle glass rings (yarn guide rings) and 1 tailless glass ring for guiding yarn. The weft yarn is sequentially threaded into the two handle glass rings, then through the tailless glass ring, and finally leads out the porcelain eye at the front of the shuttle.

Ribbon machine accessories - Glass rings are mainly used for flat shuttles, curved shuttles, and horseshoe shuttles, and can be borrowed from each other in the hat belt machine shuttle.Handle Glass Ring Ribbon Loom Shuttle Part, If you need to purchase textile glass rings, ribbon machine accessories, textile shuttle spare parts, yarn guide rings, ribbon textile equipment and other products, please contact Manager Yang of our company (Xinda Textile Machinery Parts) for consultation.
